Composite Design Pattern: Comprehensive Explanation

The Composite pattern is a structural design pattern that composes objects into tree structures to represent part-whole hierarchies. It allows clients to treat individual objects and compositions uniformly, simplifying interactions with complex, nested structures.

Core Intent

“Compose objects into tree structures to represent part-whole hierarchies. Composite lets clients treat individual objects and compositions of objects uniformly.”

This pattern enables transparent recursion over hierarchical data, where leaves and composites are interchangeable.

When to Use Composite

Scenario	Use Case
Hierarchical data structures exist	e.g., File systems, UI menus, product catalogs
Need to treat leaves and composites alike	Uniform operations (e.g., “render all”, “calculate total”)
Dynamic composition at runtime	Add/remove children without changing client code
Recursive operations on trees	Traverse and process nested elements
GUI components with nesting	Panels containing buttons, which contain icons

Avoid when:

Hierarchy is flat/simple → Overkill
Operations differ significantly between leaves/composites → Use Visitor

Where It Is Used in Real Systems

Domain	Example
File Systems	Directories (composite) containing files (leaf)
UI Frameworks	Panels (composite) with buttons/labels (leaf)
XML/HTML DOM	Elements (composite) with text nodes (leaf)
E-Commerce	Categories (composite) with products/subcategories (leaf)
Graphics	Groups (composite) of shapes (leaf)

Key Benefits

Uniformity: Single interface for leaves and composites
Encapsulation: Hierarchy details hidden from clients
Extensibility: Add new component types easily
Simplified traversal: Recursive operations on trees
Single Responsibility: Components manage own children

Real-World Example: E-Commerce Product Catalog Hierarchy

An e-commerce platform models a product catalog as a tree:

Categories (e.g., “Electronics”) contain subcategories (e.g., “Laptops”) and products (e.g., “Dell XPS”).
Operations like display catalog, calculate total inventory value, or search treat categories and products uniformly.

This allows dynamic nesting (add/remove products/categories) and recursive processing (e.g., total price across all subtrees).

C# Implementation

using System;
using System.Collections.Generic;
using System.Linq;

// ==================== COMPONENT ====================

public interface IProductComponent
{
    string Name { get; }
    decimal GetPrice();
    void Display(int indent = 0);
    void Add(IProductComponent component);
    void Remove(IProductComponent component);
    IEnumerable<IProductComponent> GetChildren();
}

// ==================== LEAF ====================

public class ProductItem : IProductComponent
{
    public string Name { get; }
    private readonly decimal _price;

    public ProductItem(string name, decimal price)
    {
        Name = name;
        _price = price;
    }

    public decimal GetPrice() => _price;

    public void Display(int indent = 0)
    {
        Console.WriteLine(new string(' ', indent * 2) + $"└── Product: {Name} - ₹{_price:F2}");
    }

    public void Add(IProductComponent component)
        => throw new InvalidOperationException("Products cannot have children.");

    public void Remove(IProductComponent component)
        => throw new InvalidOperationException("Products cannot have children.");

    public IEnumerable<IProductComponent> GetChildren() => Enumerable.Empty<IProductComponent>();
}

// ==================== COMPOSITE ====================

public class ProductCategory : IProductComponent
{
    public string Name { get; }
    private readonly List<IProductComponent> _children = new();

    public ProductCategory(string name)
    {
        Name = name;
    }

    public decimal GetPrice()
    {
        return _children.Sum(child => child.GetPrice());
    }

    public void Display(int indent = 0)
    {
        Console.WriteLine(new string(' ', indent * 2) + $"┌── Category: {Name} (Total: ₹{GetPrice():F2})");
        foreach (var child in _children)
        {
            child.Display(indent + 1);
        }
    }

    public void Add(IProductComponent component)
    {
        _children.Add(component);
    }

    public void Remove(IProductComponent component)
    {
        _children.Remove(component);
    }

    public IEnumerable<IProductComponent> GetChildren() => _children;
}

// ==================== CLIENT ====================

public class CatalogManager
{
    private readonly IProductComponent _root;

    public CatalogManager(IProductComponent root)
    {
        _root = root;
    }

    public void DisplayCatalog()
    {
        _root.Display();
    }

    public decimal GetTotalCatalogValue()
    {
        return _root.GetPrice();
    }

    public void AddToCatalog(IProductComponent component)
    {
        if (_root is ProductCategory category)
            category.Add(component);
    }
}

// ==================== DEMO ====================

class Program
{
    static void Main()
    {
        // Build hierarchy
        var electronics = new ProductCategory("Electronics");
        var laptops = new ProductCategory("Laptops");
        laptops.Add(new ProductItem("Dell XPS", 120000m));
        laptops.Add(new ProductItem("MacBook Pro", 150000m));

        var phones = new ProductCategory("Phones");
        phones.Add(new ProductItem("iPhone 15", 80000m));
        phones.Add(new ProductItem("Samsung S24", 70000m));

        electronics.Add(laptops);
        electronics.Add(phones);

        var manager = new CatalogManager(electronics);

        Console.WriteLine("=== COMPOSITE PATTERN IN E-COMMERCE ===\n");
        manager.DisplayCatalog();
        Console.WriteLine($"\nTotal Catalog Value: ₹{manager.GetTotalCatalogValue():F2}");
    }
}

using System;
using System.Collections.Generic;
using System.Linq;

// ==================== COMPONENT ====================

public interface IProductComponent
{
    string Name { get; }
    decimal GetPrice();
    void Display(int indent = 0);
    void Add(IProductComponent component);
    void Remove(IProductComponent component);
    IEnumerable<IProductComponent> GetChildren();
}

// ==================== LEAF ====================

public class ProductItem : IProductComponent
{
    public string Name { get; }
    private readonly decimal _price;

    public ProductItem(string name, decimal price)
    {
        Name = name;
        _price = price;
    }

    public decimal GetPrice() => _price;

    public void Display(int indent = 0)
    {
        Console.WriteLine(new string(' ', indent * 2) + $"└── Product: {Name} - ₹{_price:F2}");
    }

    public void Add(IProductComponent component)
        => throw new InvalidOperationException("Products cannot have children.");

    public void Remove(IProductComponent component)
        => throw new InvalidOperationException("Products cannot have children.");

    public IEnumerable<IProductComponent> GetChildren() => Enumerable.Empty<IProductComponent>();
}

// ==================== COMPOSITE ====================

public class ProductCategory : IProductComponent
{
    public string Name { get; }
    private readonly List<IProductComponent> _children = new();

    public ProductCategory(string name)
    {
        Name = name;
    }

    public decimal GetPrice()
    {
        return _children.Sum(child => child.GetPrice());
    }

    public void Display(int indent = 0)
    {
        Console.WriteLine(new string(' ', indent * 2) + $"┌── Category: {Name} (Total: ₹{GetPrice():F2})");
        foreach (var child in _children)
        {
            child.Display(indent + 1);
        }
    }

    public void Add(IProductComponent component)
    {
        _children.Add(component);
    }

    public void Remove(IProductComponent component)
    {
        _children.Remove(component);
    }

    public IEnumerable<IProductComponent> GetChildren() => _children;
}

// ==================== CLIENT ====================

public class CatalogManager
{
    private readonly IProductComponent _root;

    public CatalogManager(IProductComponent root)
    {
        _root = root;
    }

    public void DisplayCatalog()
    {
        _root.Display();
    }

    public decimal GetTotalCatalogValue()
    {
        return _root.GetPrice();
    }

    public void AddToCatalog(IProductComponent component)
    {
        if (_root is ProductCategory category)
            category.Add(component);
    }
}

// ==================== DEMO ====================

class Program
{
    static void Main()
    {
        // Build hierarchy
        var electronics = new ProductCategory("Electronics");
        var laptops = new ProductCategory("Laptops");
        laptops.Add(new ProductItem("Dell XPS", 120000m));
        laptops.Add(new ProductItem("MacBook Pro", 150000m));

        var phones = new ProductCategory("Phones");
        phones.Add(new ProductItem("iPhone 15", 80000m));
        phones.Add(new ProductItem("Samsung S24", 70000m));

        electronics.Add(laptops);
        electronics.Add(phones);

        var manager = new CatalogManager(electronics);

        Console.WriteLine("=== COMPOSITE PATTERN IN E-COMMERCE ===\n");
        manager.DisplayCatalog();
        Console.WriteLine($"\nTotal Catalog Value: ₹{manager.GetTotalCatalogValue():F2}");
    }
}

Sample Output

=== COMPOSITE PATTERN IN E-COMMERCE ===

┌── Category: Electronics (Total: ₹470000.00)
  ├── Category: Laptops (Total: ₹270000.00)
  │   └── Product: Dell XPS - ₹120000.00
  │   └── Product: MacBook Pro - ₹150000.00
  ├── Category: Phones (Total: ₹150000.00)
      └── Product: iPhone 15 - ₹80000.00
      └── Product: Samsung S24 - ₹70000.00

Total Catalog Value: ₹470000.00

=== COMPOSITE PATTERN IN E-COMMERCE ===

┌── Category: Electronics (Total: ₹470000.00)
  ├── Category: Laptops (Total: ₹270000.00)
  │   └── Product: Dell XPS - ₹120000.00
  │   └── Product: MacBook Pro - ₹150000.00
  ├── Category: Phones (Total: ₹150000.00)
      └── Product: iPhone 15 - ₹80000.00
      └── Product: Samsung S24 - ₹70000.00

Total Catalog Value: ₹470000.00

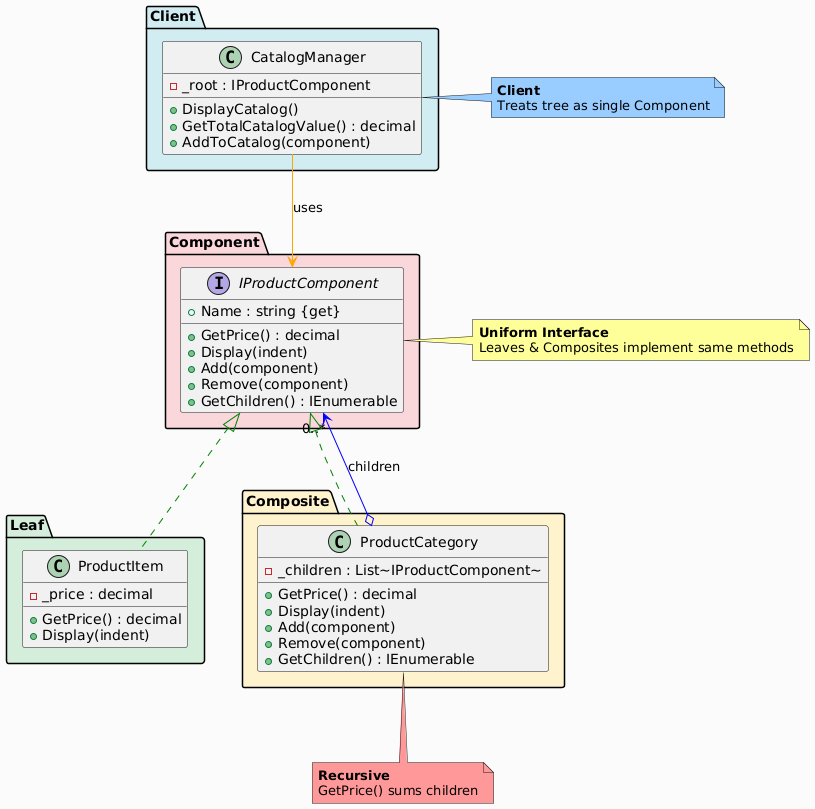

UML Class Diagram

Participants in the Composite Pattern

The classes and objects participating in this pattern include:

Component (IProductComponent)
- Declares the common interface for both leaf and composite objects.
- Defines operations like Display(), GetPrice().
Leaf (ProductItem)
- Represents primitive elements with no children.
- Implements component operations directly.
Composite (ProductCategory)
- Defines behavior for components with children.
- Stores child components and delegates operations (e.g., sum prices recursively).
Client
- Works with Component references, unaware of leaf vs. composite.

Summary Table

Participant	Role in E-Commerce Example
Component	IProductComponent – common interface for products/categories
Leaf	ProductItem – atomic product with price
Composite	ProductCategory – container for sub-items
Client	CatalogManager – operates on hierarchy uniformly

Advantages in E-Commerce

Benefit	Impact
Scalable catalogs	Nest categories dynamically
Uniform operations	Search/display across entire tree
Recursive queries	Total value, inventory count
Extensible	Add new component types (e.g., bundles)

Composite vs Decorator

Aspect	Composite	Decorator
Structure	Tree hierarchy (part-whole)	Wrapper chain (add behavior)
Purpose	Group objects	Enhance single object
Example	Catalog tree	Product with wrapper (e.g., discount)
Children	Many (recursive)	Single (linear)

Conclusion

The Composite pattern is ideal for e-commerce catalogs, where nested categories and products form a tree. It provides transparent handling of hierarchies, enabling efficient traversal and operations while maintaining flexibility for dynamic content management.

Employed in ASP.NET Core (view components), XML parsers, and e-commerce platforms like Shopify for menu/product trees.
